Craftwall

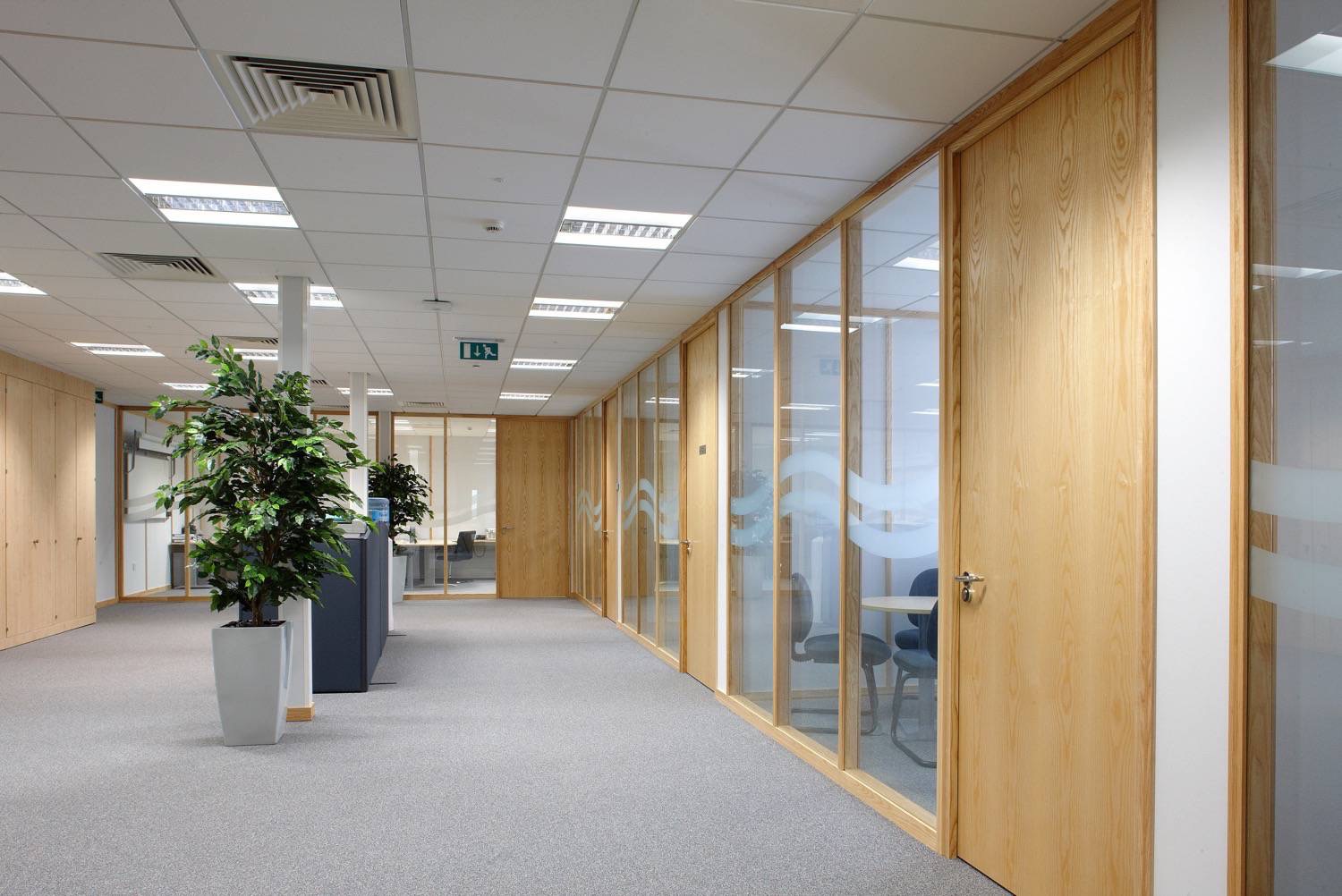

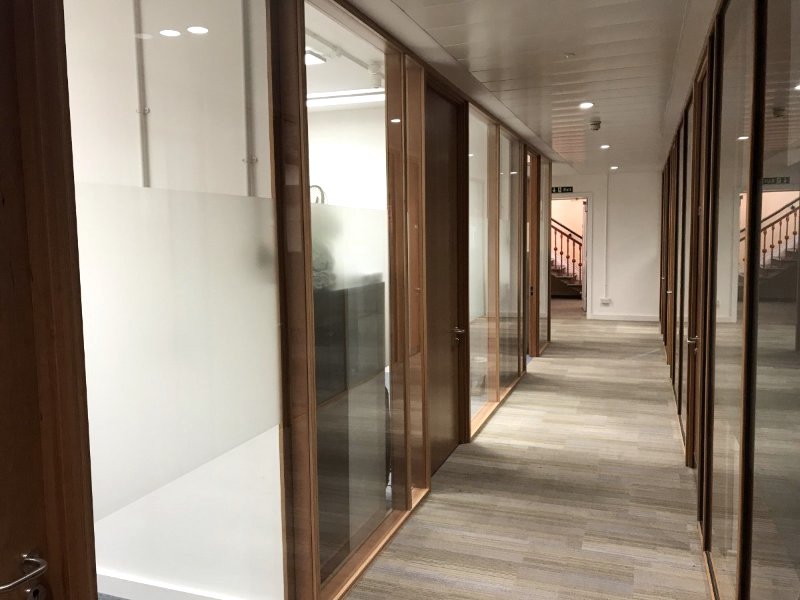

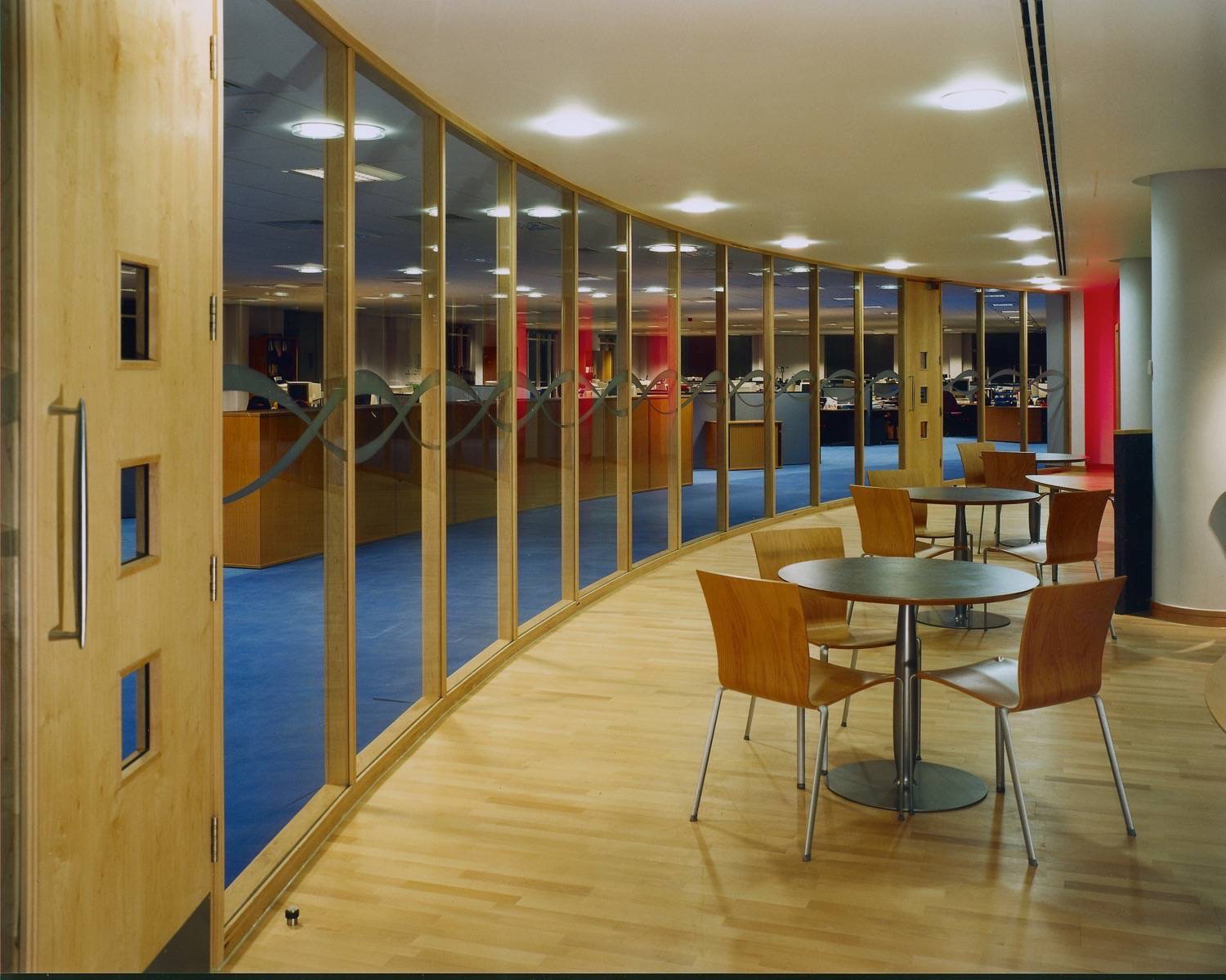

Craftwall is a premium quality relocatable partitioning system that brings the natural beauty and warmth of wood into your interior space. The timber finished system is comprised of an internal steel and aluminium framework with concealed fixings, capable of achieving 60-minute fire rating and 41 dB Rw using 6mm glass.. Fully compatible with all other Neslo systems.

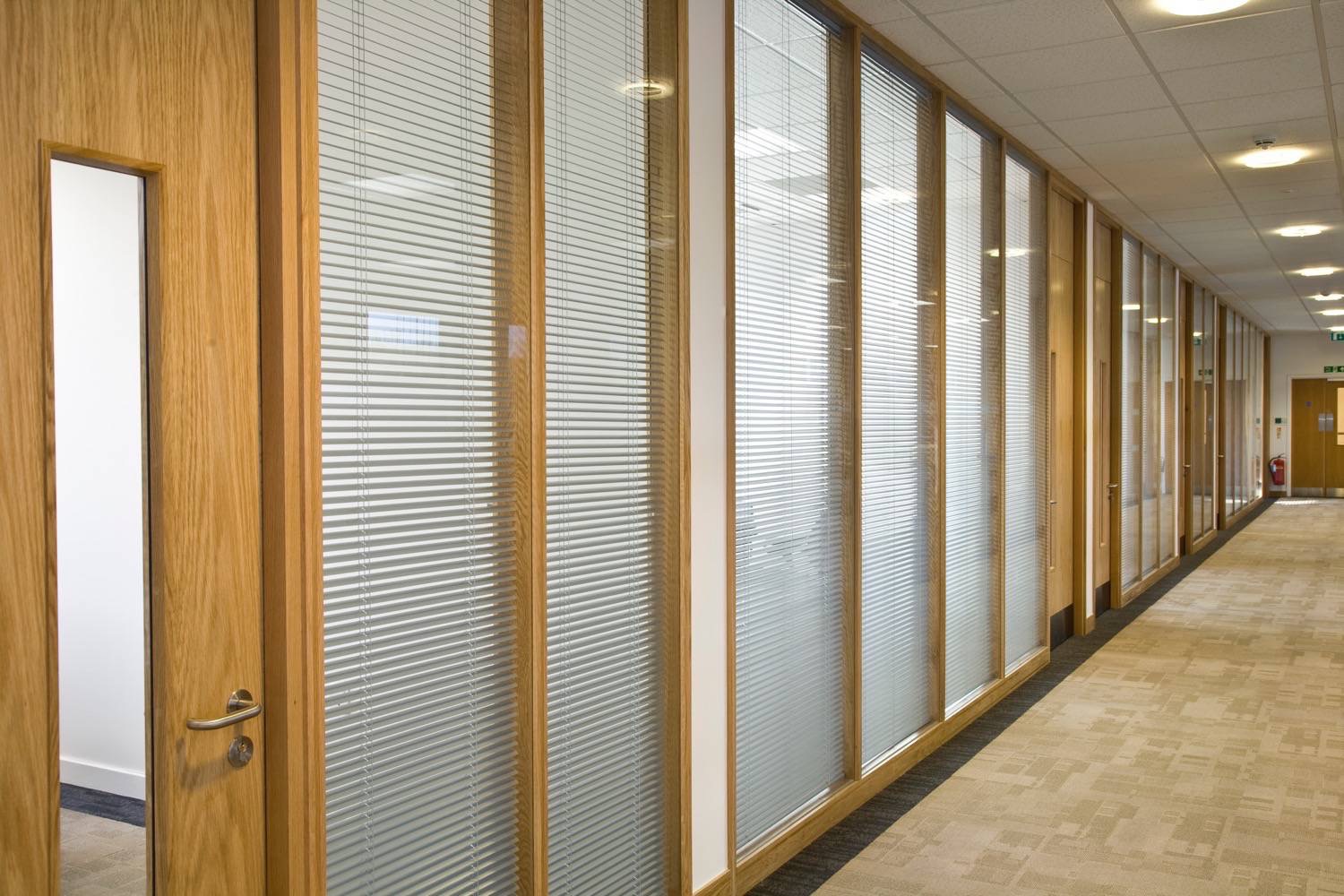

Electrical and mechanical services are accommodated within the partition cavity. Integral blinds can be installed, operated either manually or electronically. The glazed modules can also have manifestations and graphics applied to suit.

Choose from a wide range of hardwood timbers such as oak, walnut, ash, cherry and maple.

Craftwall is flexible, modular and simple to erect and relocate.

For technical and further information contact info@neslopartitioning.co.uk or 03333 583 003

Ironmongery

Glass

Blinds

Doors

Installers

Design

dimensions

Dimensions

Single boarded 90mm
Double boarded 115mm

sound

Sound Tested

Solid single  – up to 45dB Rw
Solid double – up to 51dB Rw
Glazed single – 35dB Rw
Glazed double – 41dB Rw
(Tested using standard 12.5mm plasterboard)

build height

Build Height

Solid - Up to 8000mm
Glazed - Up to 4300mm

deflection

Deflection

+/- 15mm
+/- 25mm

fire rating

Fire Rating

Solid single – up to 60/60
Solid double – up to 120/120
Glazed – 60/0
(Tested to Fire Resistance Standard: BS 476:Part 22)

mechanical and electrical services

Services

M&E Services

design and environment

Design

All sections that make up our Craftwall system are designed and manufactured in the UK.
The system is fully relocatable and recyclable.
